The Future of Landscaping-The Advantages of GPS RTK Robotic Mower

Landscaping has become significantly easier thanks to modern engineering, including robotic lawnmowers.

Introducing HYgreen smart mower, the ultimate robotic lawnmower solution for your lawn maintenance needs. Robotic lawnmowers have been in the industry for a very long time. They keep evolving into a better version of themselves. One of the best features of the mower is that it is empowered with GPS RTK expertise, which we call the OWL antenna. Thanks to our GPS navigation technology, operators have a clear advantage.

1. Goodbye perimeter wire

Advanced GPS sensors help you map the mowing area by creating virtual boundaries from the HYgreen smart mower APP to reduce your workload of installing perimeter wires. Also, it is time-consuming to handle complex areas with wire installation, but not for our OWL-navigated mower.

2. GPS Efficient navigation

GPS RTK (Real-Time Kinematic) is a precise positioning technique used in various applications, including robotic lawnmowers. RTK allows for precise accuracy in positioning, which is essential for the mower as it needs to mow the lawn with high precision to avoid overlapping or missing spots. Systematic mowing patterns can be achieved using RTK technology, which gives you a professional experience.

3. Smooth Zone Transitions

Robotic lawnmowers can handle multiple mowing zones precisely and efficiently with the help of GPS RTK technology.

When a lawn is divided into multiple zones, each with distinct shapes or obstacles, it relies on the GPS RTK data to perform smoothly between transition zones. Each mowing zone is defined and programmed into the mower control system. After the setting is done from the smart app, our mower will work itself.

4. Sustainable solar energy

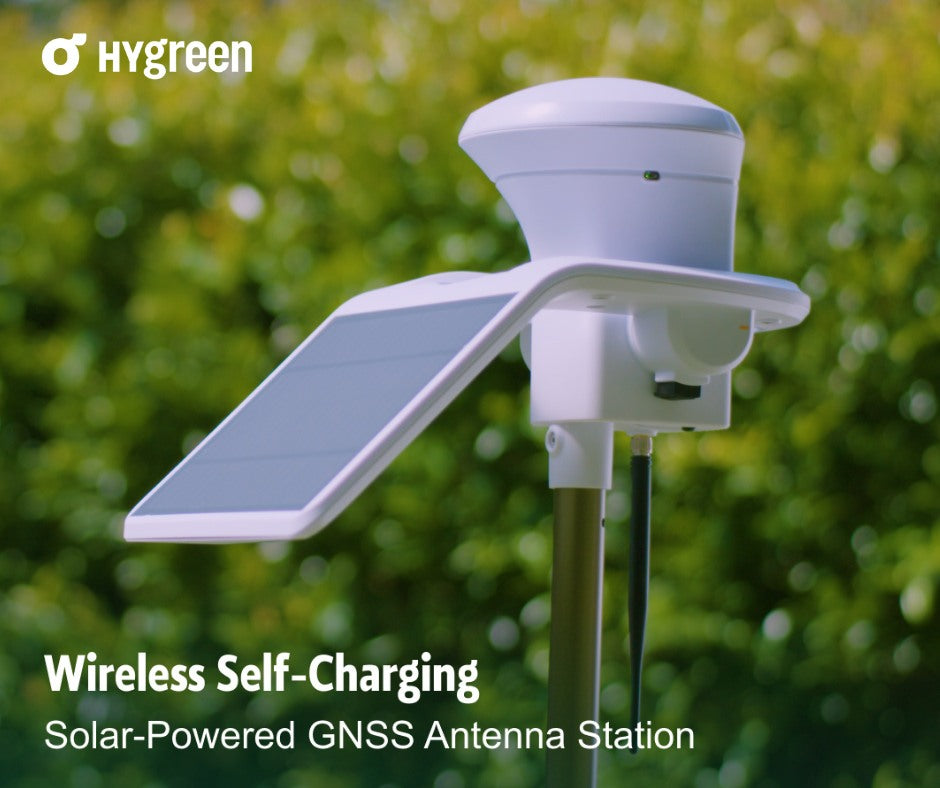

Our goal is to provide a practical and sustainable approach to extend their operating time and reduce dependency on traditional power sources. Our solar panel is located in the RTK tripod, so the power that holds the OWL antenna is self-sufficient. By adjusting the angles of solar panels, you can achieve the best charging efficiency at different locations.

• Solar panels harness energy from the sun and convert it into electrical power. By installing solar panels on the robotic mower, it can charge its batteries during daylight hours. This way we can extend the operating time of the mower, allowing it to work for longer periods before requiring recharging.
• The solar panels can offset some of the power consumption, reducing the frequency of manual recharging. This way, our mower can cover more ground within a single charge.
• By incorporating solar panels into robotic mowers, the environmental impact is reduced compared to using traditional fossil-fuel-based power sources.

How to install a GPS RTK antenna

The Charging Hub and antenna are important for the mower to work efficiently. The GPS tripod should be placed in an open, wide space where it can get a strong signal. The OWL antenna should have a clear sky view, not under the trees or obstacles. For optimal satellite signal reception and stable operation of the GOMOW, install the antenna station in an open space. Here is all the information to follow,

• Ensure that the open sky has a minimum of 90° of unobstructed view.

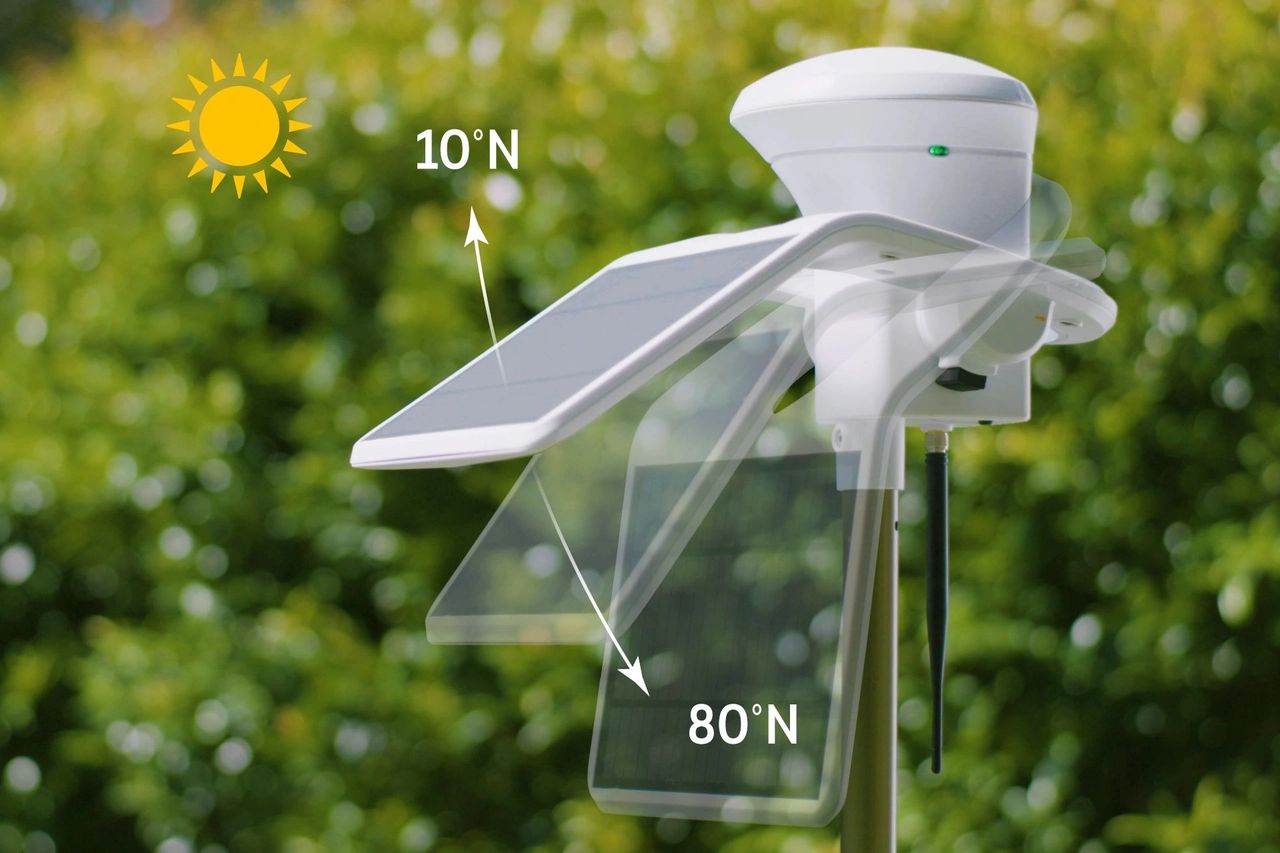

• Adjust the solar panel to face the daylight.
• Attach the base of the tripod to tube 1 using the screw.
• Connect tube 1 to tube 2 by aligning and clicking them into place.
• Rotate the ground spike to attach it to the tripod, insert the ground spike into the ground, and secure the tripod using the ground stakes, placing one stake into each of the three holes on the tripod leg.
• Install the radio antenna and insert the battery, ensuring it is properly seated and secured. The GNSS antenna station light will start blinking afterwards.
• Please fully charge the GPS battery before installation.
• Allow the GNSS antenna station to charge under the sun before setting up the map.
• Make sure the GNSS station is level and stable.

NOTE:

1. Install the GNSS antenna station in a location with full sun exposure, avoiding areas where sunlight may be BLOCKED.
2. For maximum charging efficiency, position the solar panel south if you're in the Northern Hemisphere, and north if you're in the Southern Hemisphere.
3. The charging station and the GNSS antenna station should be kept away from outdoor water systems such as garden sprinklers.
4. Do not install the GNSS antenna station at an angle.
5. Follow the manufacturer's guidelines to align the GPS receiver for RTK operation. Set up the correct RTK correction input method, communication parameters, and other necessary settings.
6. Conduct field tests to verify the accuracy and performance of the GPS RTK system.
7. Regularly monitor the performance and check for any signal interference, equipment damage, or misalignments that could affect accuracy.

------ It's important to note that RTK requires a reliable communication link between the base station and the rover on the mower. If the communication link is lost, the accuracy of the GPS position may degrade to the standard GPS accuracy. Therefore, ensuring a stable and robust communication link is essential for the successful operation of RTK-enabled robotic lawnmowers.

The high accuracy of RTK ensures that our mower can precisely navigate, plan paths, and adapt its mowing behavior to suit the unique characteristics of each zone, leading to a well-maintained lawn with minimal human intervention.
